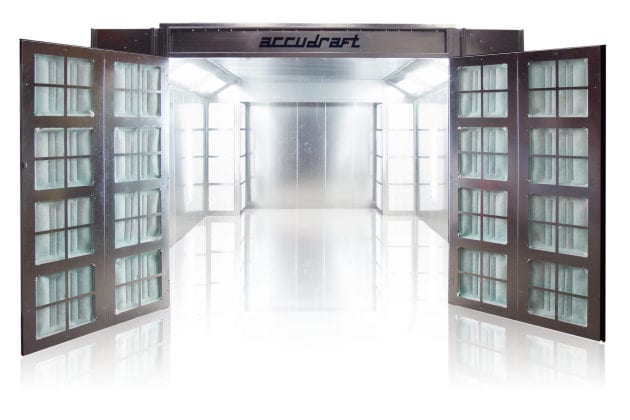

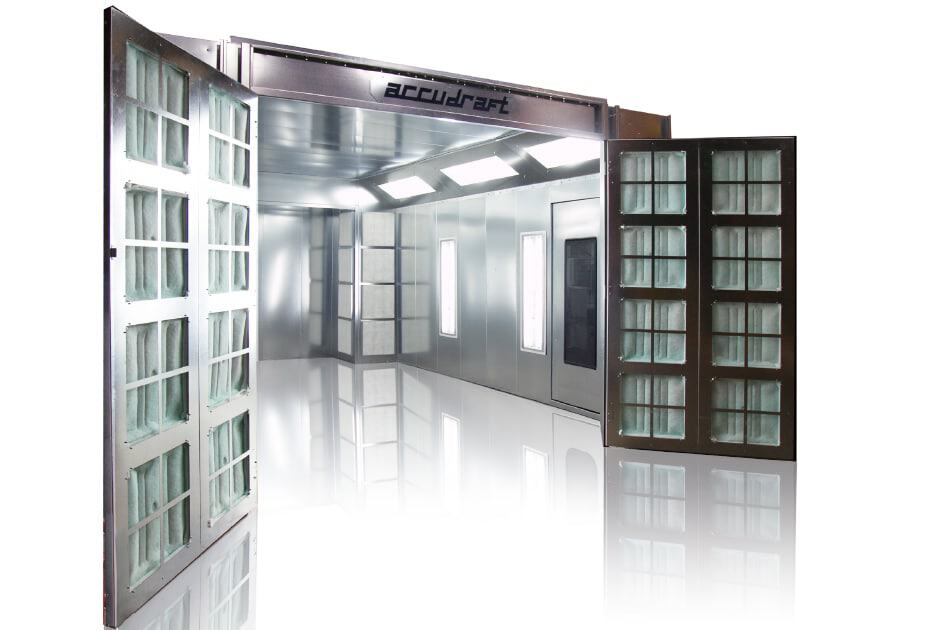

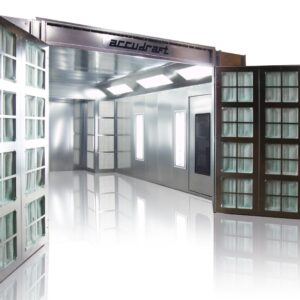

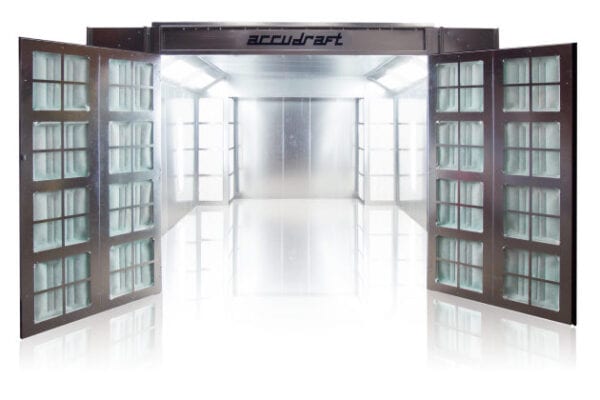

Crossflow

Air enters the front of the paint booth, flows along the length of the cabin and is exhausted out the rear of the paint booth. Shown below with white on white finish option.

*Click image below to view specs*

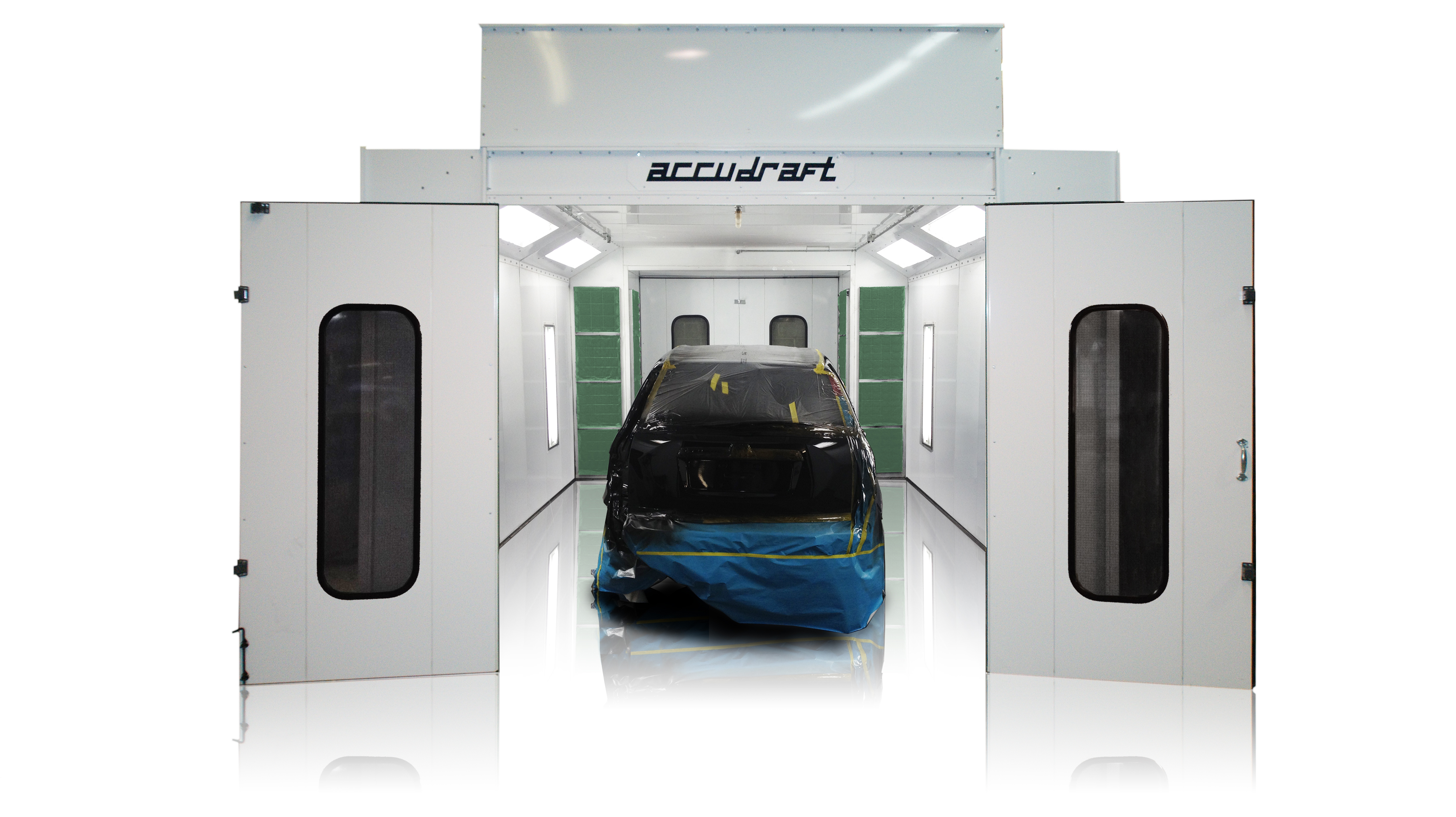

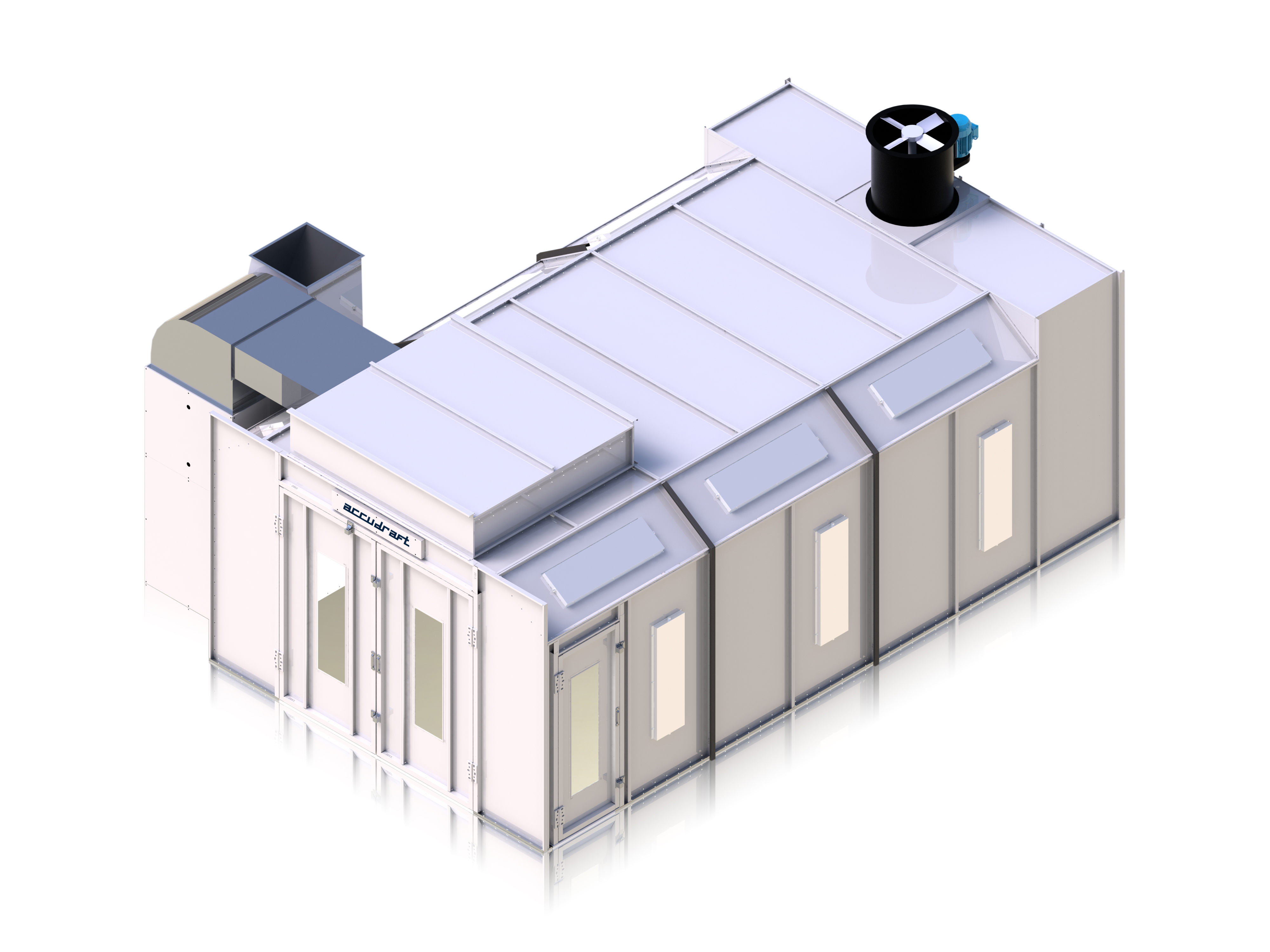

Semi Downdraft

Also known as a modified downdraft paint booth or simply “semi down paint booth”. Air enters the ceiling of the paint booth, flows along the length of the cabin and is exhausted out the rear of the paint booth. Shown below with optional heating system and white on white finish option.

*Click image below to view specs*

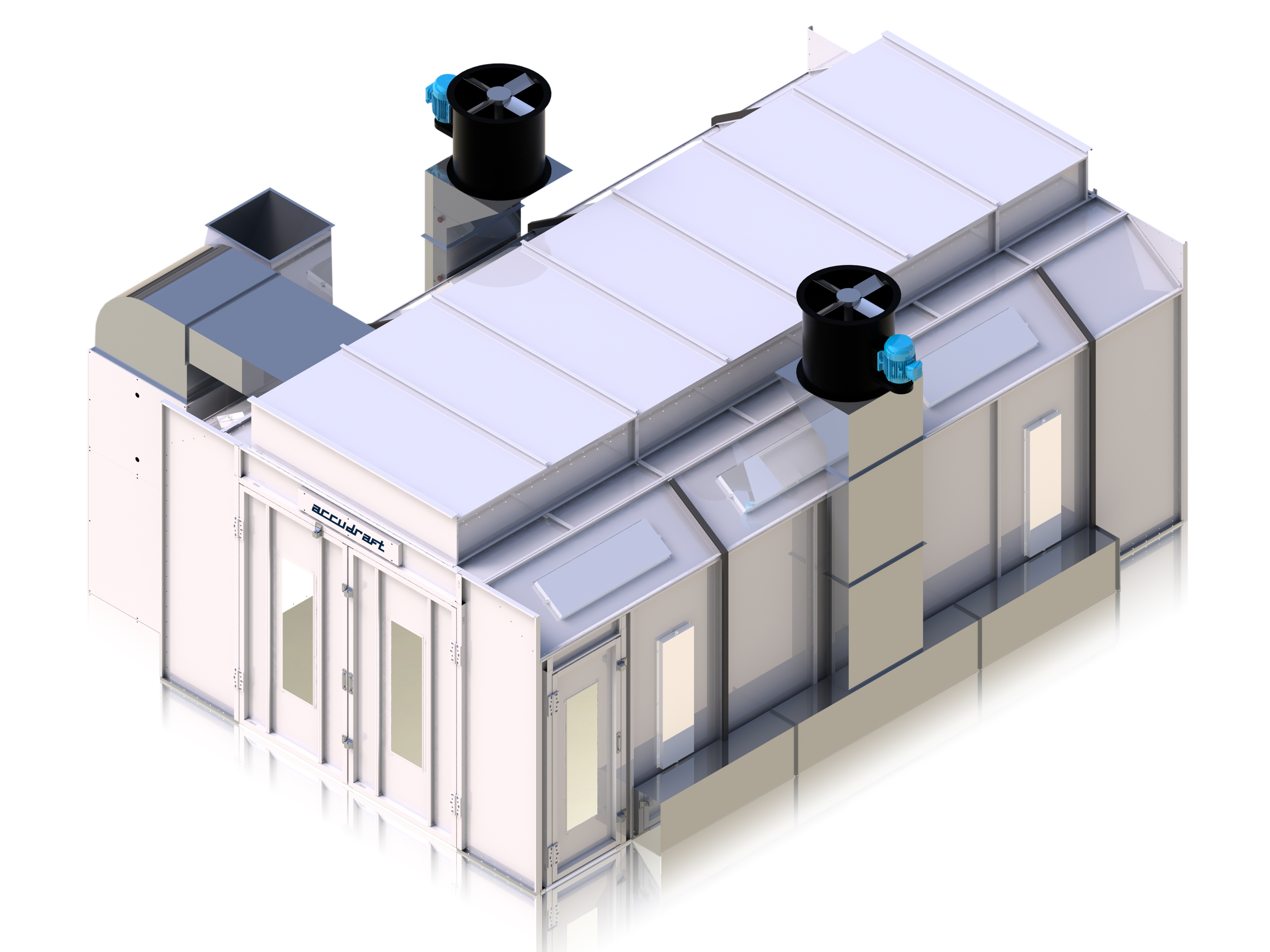

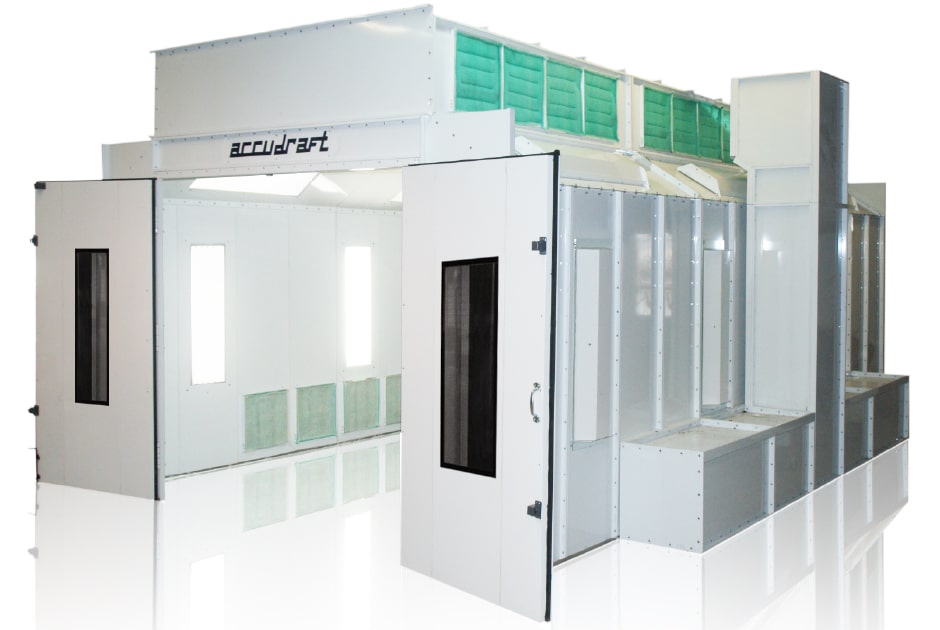

Side Downdraft

Also known as a “side draft” or “side down” paint booth. Air enters the ceiling of the paint booth, flows downward from ceiling to floor and is exhausted out the side walls. Shown below with optional heating system and white on white finish option.

*Click image below to view specs*

Computerized Pre-Punched Numbered Design

All panels are made with pre-punched bolt holes and punched identification numbers to make installation easy. 18 gauge steel in galvanized or white finish.

Other Options

  • Drive Through Doors
  • Reverse Flow Layout
  • Downdraft
  • Side Draft

Spark Proof Tube Axial Exhaust Fan

Spark-proof construction allows this fan to exhaust hazardous or explosive gases. Regreasable ball bearings provide easy maintenance from outside the fan body extending usable life and performance.

Paint Booth Controls

ETL listed paint booth controls include all fan motor and light contacts with thermal overload protection on every circuit. Filter pressure gauge, solenoid, and air flow switches included.

SmartPad™ Digital Controls

Accudraft’s SmartPad™ digital control panel provides the user with all process information and settings in one compact and easy to read paint booth control unit. Choose between solvent and waterborne paint modes before you start. All processes are then automatic for that type of paint. The SmartPad™ can also integrate Accudraft’s Xcelerator™ for the ultimate in paint drying speed.

FOCUS™ 15″ Touchscreen Controls

FOCUS® allows the user to configure up to 999 separate programs each set to your preferences or according to coating manufacturer’s recommendations.

  • Monitors humidity in the space.
  • Records cost info per phase
  • Records cost info per job RA#
  • Painter name required per job
  • Job RA# required per job

Accudraft’s FOCUS™ touchscreen control panel supports online support & services. Tech support can access any FOCUS system and monitor operations in real time.

Accudraft-FOCUS-Touchscreen-Control-Panel-for-Paint-Booth-with-Remote-Monitoring

Galvanized Finish

Single skin pre-punched galvanized steel

White on White Finish

Pre-coated white baked on enamel interior and exterior

Drive Through

Drive in and drive out in one direction. Keep your shop flowing.

Tempered Glass Windows

Tempered safety glass windows in main drive-in doors and side man door.

PRO-SERIES-Paint Booth with Windows

PRO Series Standalone AMU

Add heated makeup air for proper application temperatures during spraying and heated cure cycle to process jobs quickly.

PRO Series Paint Mixing Room

Add a listed pre-fabricated paint mixing room that meets all necessary codes*. Either attached or standalone.

* Meeting all regulations is not guaranteed. Final approval of location of mixing room and application of codes and regulations on site are up to the local inspector and the authority having jurisdiction.

Attached-Paint-Mixing-Room

Xcelerator

A high velocity air jet nozzle system designed to flash off waterborne coatings in a fraction of the time. The Accudraft Xcelerator can nearly double finishing speeds overnight, turning any new or existing spray booth into a high performance machine.
