Simple Joint Construction

Interlocking Panel System
The Simple Joint interlock system creates a workspace with up to four times the integrity of ordinary spray booths. Galvanized steel and industrial PVC coatings provide the highest grade of durability and outdoor weather resistance available. The Simple Joint panel design also produces a neat &g clean finish free of bolts or screws.

Accudraft Insulated Vinyl Coated Paint Booth Walls Color Choices

DUAL SKIN INSULATED CONSTRUCTION

  • Galvanized Steel
  • Vinyl Coated Interior & Exterior
  • Manufactured & Shipped with Protective Polyethylene Coating
  • 48 Inch Interlocking Male & Female Panels
  • Non-flammable Insulation
  • Meets National Fire Protection Requirements (NFPA Compliant)
  • Available in Blue, White, Red, or Grey Exterior Colors
  • 4 Door Upgrade

Other Options

  • Drive Through Doors
  • Reverse Flow Layout
  • Downdraft
  • Side Draft

Accudraft TIMELESS™ Direct Drive Paint Booth Air Makeup System

TIMELESS™ Direct Drive Paint Booth Air Makeup System

The TIMELESS™ Series direct drive paint booth air makeup unit is a completely integrated intake, heat, and exhaust system designed for high production downdraft paint booths. Direct drive turbine fans provide powerful airflow in a more compact footprint. Recycled direct fire heating allow the ALTO to reach hotter temperatures faster with maximum energy efficiency.

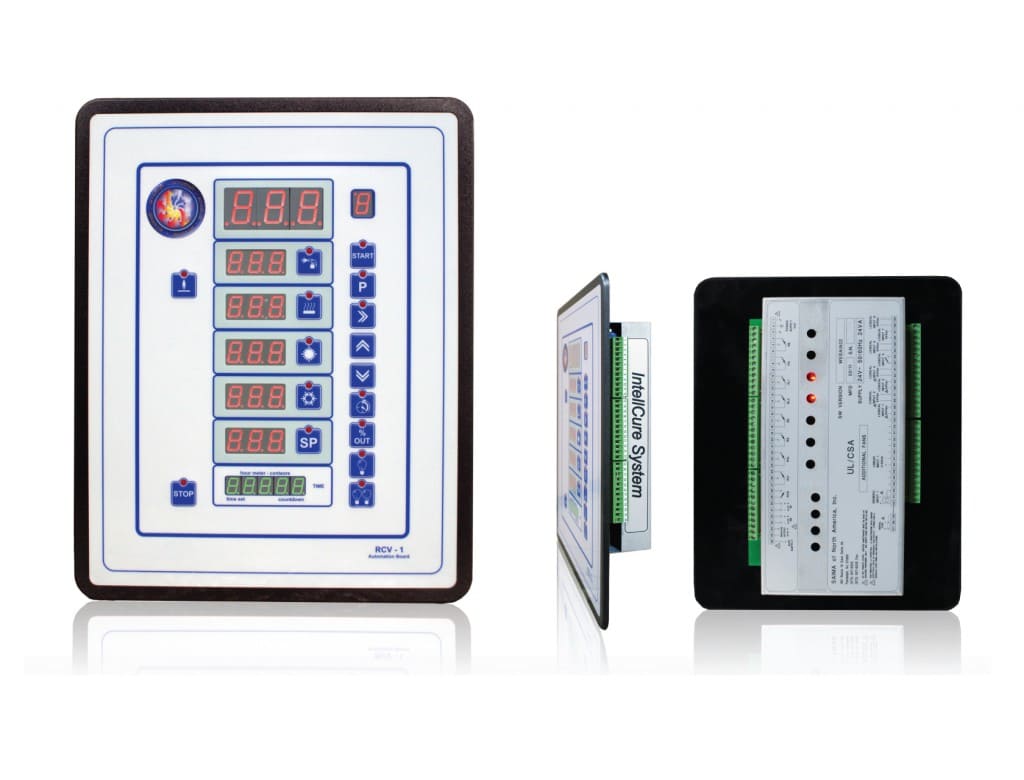

Accudraft SmartPad Digital Controls

SmartPad™ Digital Controls

Accudraft’s SmartPad™ digital control panel provides the user with all process information and settings in one compact and easy to read paint booth control unit. Choose between solvent and waterborne paint modes before you start. All processes are then automatic for that type of paint. The SmartPad™ can also integrate Accudraft’s Xcelerator™ for the ultimate in paint drying speed.

FOCUS™ 15″ Touchscreen Controls

FOCUS® is an upgrade allows the user to configure up to 5 separate programs each set to your preferences or according to coating manufacturer’s recommendations.

  • Easy to use touchscreen monitor
  • Quickly and easily change modes during painting operation
  • Change the time, temperature, and airflow quickly from the home screen
  • Monitor humidity, temperature, and other key data
  • Filter change notifications
  • Remote diagnostics and monitoring to reduce downtime

Accudraft’s FOCUS™ touchscreen control panel supports online support & services. Tech support can access any FOCUS system and monitor operations in real time.

Accudraft FOCUS™ Touchscreen Control Panel

Pitless Downdraft

The Accudraft ALTO paint booth system is also available in a pit-less downdraft design where the entire paint booth and mechanicals are installed on a raised steel basement with drive-up ramps. This provides all the benefits of a downdraft airflow paint booth system without the need for expensive concrete work. A fully grated floor provides one of the cleanest finishing environments available.

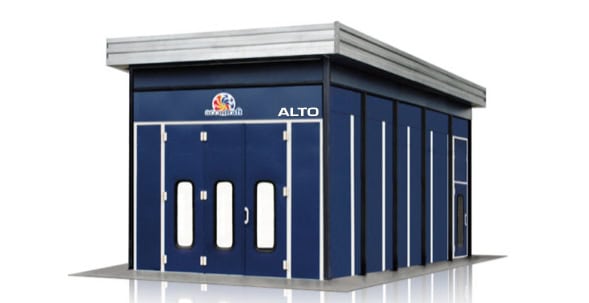

Accudraft Alto Outdoor Paint Booth

Outdoor Application

The ALTO paint booth system is available as a weatherproof outdoor unit with all elements installed within a self contained enclosure. Valuable shop space is saved and installation downtime is completely eliminated. The entire system can be installed while the rest of the facility keeps right on working.

Other Options

  • Xcelerator™ Waterborne paint drying system
  • Length and Width Extensions
  • Drive Thru
  • Observation Windows in Walls
  • 4-Door Frontal Upgrade
  • Focus Control Panel Upgrade
  • Sideload
  • Available in an outdoor model
  • Overhead Mechanical

Xcelerator

The Xcelerator was developed in order to help high production collision centers meet and surpass their financial goals. Often times, productivity is held back by paint drying time. Even the best managed collision center will eventually reach a production limit due to the finishing & drying process. The Accudraft Xcelerator can nearly double finishing speeds overnight, turning any new or existing spray booth into a high performance machine.

Accudraft Xcelerators
